- Specialty Springs:Extension Springs with High Initial Tension
Specialty Springs:
Extension Springs with High Initial Tension
Special Shape Products
General-purpose Products
Flat Springs
Shape Memory Alloy Springs
Our unique processing method realizes extension springs with high initial tension.
Features
- Extension springs with high initial tension achieved by our unique processing method.
Compactness
Achieves compactness and weight reduction without changing the load.
Conventional Spring
Because the initial tension P2" is small, a large deflection σ” is required to obtain the required load P, needing a large equipment.

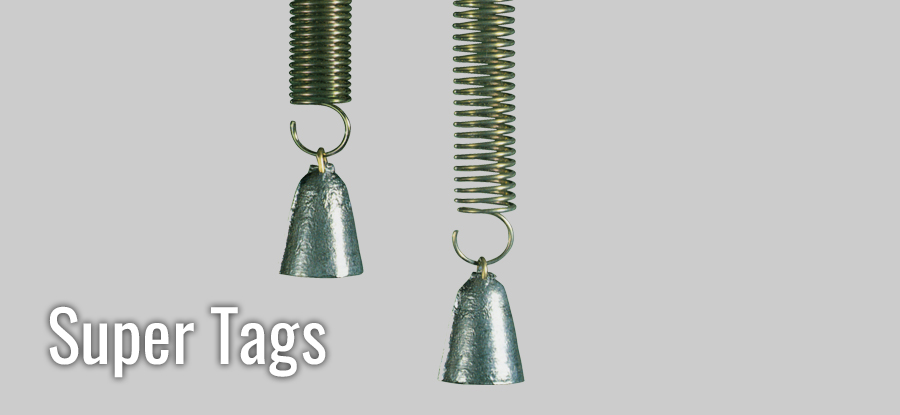

Specialty Spring (Super Tag)
Because the initial tension P1’ is large, a small deflection σ‘ only is required to obtain the required load P, allowing compact design.
Smooth Operation
The increase in spring rate is suppressed to achieve stable operability.
Conventional Spring
Because the load difference between σ1 and σ2 (P2" - P1) is large, the change in characteristics is sudden, resulting in awkward operation. Also, the spring rate is large.
Specialty Spring (Super Tag)
The load difference between σ1 and σ2 (P2‘ - P1) is small, making it easier to stabilize the characteristics and providing smooth operation. The spring rate is small.
