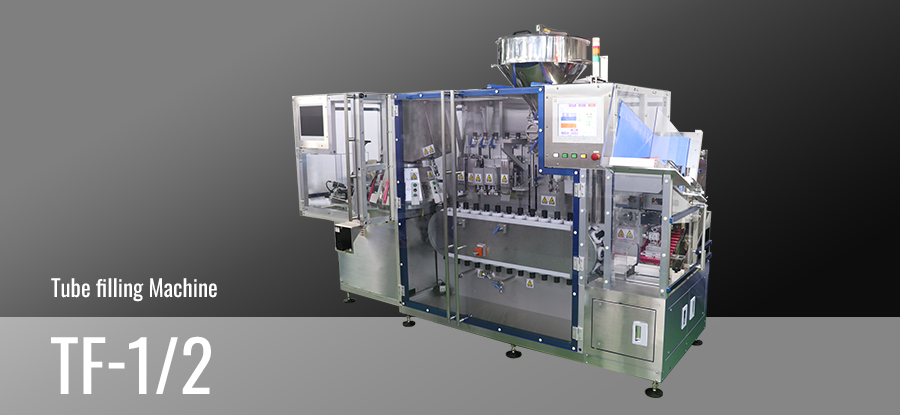

Tube filling MachineTF-1/2
Tabletop Blister Machine
Tube filling Machine, Liquid filling Machine
Strip Machine
PTP Packaging Machine
EAGLE LP
(20 blisters/min.)
EAGLE 50
(50 blisters/min.)
EAGLE 100
(100 blisters/min.)
EAGLE 100A
(100 blisters/min. AL/AL,
Resin materials)
EAGLE Rx
(100 blisters/min. Child Resistance)
EAGLE 200
(200 blisters/min.)
PF-H3000/4000
(300-400 blisters/min.)
PF-H6000
(600 blisters/min.)
Multi Blister Packaging Machine
Features
- Front side Adjusted and Operated
Designed with the drives at the rear, allowing for ample working space at the front.
Effortless cleaning and adjustment.
*Patents obtained - Resin, lamination, and aluminum tubes are supported.
Multiple Sealing methods are available including ultrasonic waves, hot air, 3 to 5 times folding. - Future Scalability is supported.
Increase from 1 to 2 lines.
*Image after increasing the line
Specifications
| Model Number | TF-1/2 | |
|---|---|---|
| Production Speed | Max: 100 cycles/min. *depends on filling volume |
|
| Tube specification | Type | Resin, Lamination, AL |
| Diameter | Min:φ10 mm Max:φ50 mm |
|
| Length | Min:50 mm Max:250 mm |
|
| Utility | Power | 3 phase, AC200V, 50A |
| Compressed air | 600 l/min. *in case of AL tube | |
| Machine Dimension | （W） 2,090 x (D) 1,464 x (H) 2,127 mm *in case of AL tube |
|
| Machine Weight | approx. 1,500 kg | |
