The shape is controlled by temperature.
Shape memory alloy springs are springs made using special alloys such as Ni-Ti. Once a specific shape is memorized, they have the property of returning to their original shape even after being deformed due to temperature changes or other factors.
Furthermore, this property can be utilized for temperature-dependent operation control and as a drive mechanism.

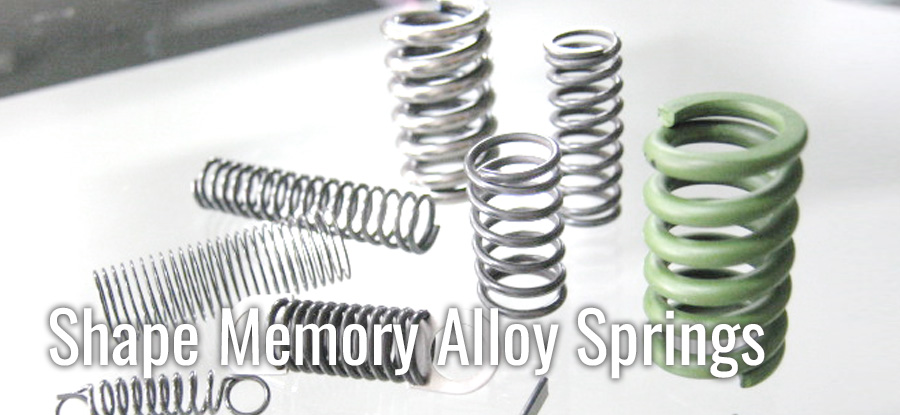

Shape memory alloy spring
Features of shape memory alloy springs
Special springs that remember their shape
It possesses the property of returning to its original shape when heated or subjected to temperature changes, and is used in special mechanisms and actuator applications.
Achieves a compact drive mechanism.
By utilizing operation driven by temperature changes, a compact drive mechanism can be realized without the need for motors or other components.
Compatible with temperature control mechanisms
It is suitable for operating mechanisms that utilize temperature changes and is used in various temperature control devices.
Processing range
| Wire diameter | φ0.6mm～2.5mm |
|---|---|
| Coil outer diameter | φ13.3mm～15mm |
| Material | Ni-Ti etc. |
| Correspondence record | Usage range: 10℃~70℃ Operating temperature range: 35℃~45℃ |
Use applications
| Housing equipment related | Mixing faucet / Fire damper / Hot water prevention valve / Ventilation shutter |
|---|
Spring Design Explanation
This guide explains the basic symbols used in spring design, the formulas employed, and the points that must be considered during manufacturing.
FAQ
Is it suitable for use in corrosive environments?
Ni-Ti-based shape memory alloy springs (SMA) have excellent corrosion resistance and can be used in many corrosive environments.
However, under certain conditions, such as a chloride-rich environment, it may be affected by corrosion fatigue.
What is the operating temperature range?
There is no single, fixed operating temperature range.
The applicable temperature range and tolerances vary depending on the material, manufacturing conditions, and specifications.
