What are Edgewise Coils?
Edgewise coil (EWC) is a general term for coils made from rectangular wire that are processed on the edge (short side) where it is less likely to bend.
Process results by Maruho Hatsujyo Kogyo
Sample① Measurement
Plate thickness : 0.46mm
Plate width : 1mm
Winding numbers : 6 winding
Outer diameter: 5.25mm
Sample② Measurement
Plate thickness : 0.15mm
Plate width : 0.5mm
Winding numbers : 5 winding
Outer diameter: 4mm
Sample③ Measurement
Plate thickness : 0.9mm
Plate width : 6mm
Winding numbers : 8 + 2/3 winding
Outer diameter: (Horizontal) 44mm (Vertical) 36.5mm
Sample④ Measurement
Plate thickness : 0.6mm
Plate width : 1.5mm
Winding numbers : 9 winding
Outer diameter: (Horizontal) 11mm (Vertical) 11mm
Sample⑤ Measurement
Plate thickness : 0.8mm
Plate width : 9mm
Winding numbers : 22 + 1/2 winding
Outer diameter: (Horizontal) 86.5mm (Vertical) 67mm
Sample⑥ Measurement
Plate thickness : 0.9mm
Plate width : 6.5mm
Winding numbers : 7 + 3/4 winding
Outer diameter: (Horizontal) 60.5mm (Vertical) 65.5mm
We can process rectangular wire with copper material coated as desired. In addition to peeling, soldering and bending the legs, we can also process rectangular and oval shapes.

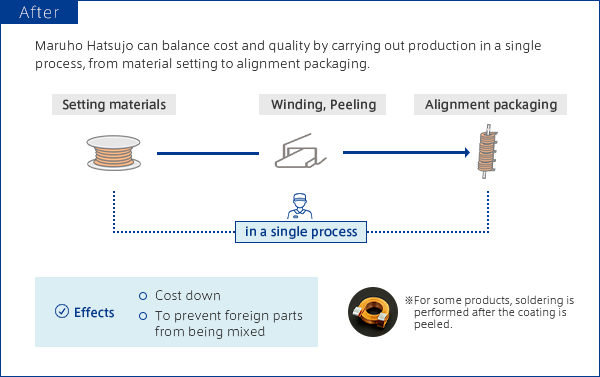

One example of automated production processes
Strengths of Maruho Hatsujyo Group
Design support
- Once you specify the characteristic value (inductance), we will propose the shape, material type, and material dimensions that match the characteristics.
- We have track records of post-processing evaluation (we have an LCR meter in-house) and delivery.
We will make suggestions that suit each product.
If you have any questions, please feel free to contact us.
Usage of Edgewise Coils
- Power supply equipment (switching power supply)
- Choke coils
- Transformers
- Power conductors
- DC-DC converters etc.
